Chemically Crosslinked Polyethylene Foam

Gulf-O-Flex® XLPEEngineered insulation, Middle East proven.

Closed-cell elastomeric XLPE foam with alupet facing - a passive, self-sustaining solution for thermal and acoustic insulation in demanding environments.

Gulf-O-Flex® XLPE is a chemically crosslinked polyethylene closed-cell foam, finished with a thin layer of alupet facing and engineered for difficult environments in the long term. Its thin-layer, lightweight construction allows it to withstand high-pressure environments while delivering reliable thermal and acoustic performance.

30+
Years
5/5
Certifications
6+
Applications
Material
Chemically Crosslinked Polyethylene Foam
Cell Structure
Closed Cell
Density
22–45 kg/m³ (ASTM D 3575)
Thermal Conductivity (λ)
0.045 W/m·K at 35°C (ASTM C518)
Compliant batch
Lot · GOF-XLPE-26
Certified toBS 476 Part 6 & 7ASTM E84ASTM C518ASTM D 3575ISO 9001
Performance

Engineered for extreme climates.

Four pillars define every Gulf-O-Flex® roll, sheet and tube - measured, certified and serialised.

01
Thermal
0.045 W/m·K at 35°C (ASTM C518)
Conductivity
02
Fire Safety
BS 476 Part 6 Class O / Part 7 Class O
Reaction to fire
03
Moisture
≤ 2% (ASTM D 1056)
Vapour barrier
04
Temperature
-183°C to +115°C (ASTM D 3575)
Service window
Overview

Built around three decades of regional know-how.

Gulf-O-Flex® XLPE is a chemically crosslinked polyethylene closed-cell foam, finished with a thin layer of alupet facing and engineered for difficult environments in the long term. Its thin-layer, lightweight construction allows it to withstand high-pressure environments while delivering reliable thermal and acoustic performance.

As a passive solution to energy efficiency, XLPE requires no active maintenance to perform - making it an asset across HVAC, ductwork, automotive, marine, and industrial insulation applications. Self-extinguishing with Class O fire rating per BS 476.

Manufactured
UAE, Saudi Arabia, Srilanka
Distributed
90+ countries
Lead time
2–4 weeks
Highlights

Why specifiers choose this grade.

  • 01Closed-cell chemically crosslinked polyethylene structure
  • 02Factory-applied alupet facing for vapour and surface protection
  • 03Self-extinguishing - Class O (BS 476 Part 6 & 7)
  • 04FSI ≤ 25, SDI ≤ 50 (ASTM E84)
  • 05Excellent water vapour barrier - μ ≥ 11,000 (foil side)
  • 06Withstands high-pressure environments - thin & lightweight
  • 07Superior thermal and acoustic insulation properties
  • 08Low water absorption (≤ 2%) - long-term durability
Gallery

Product close-up.

Gulf-O-Flex XLPE closed-cell foam

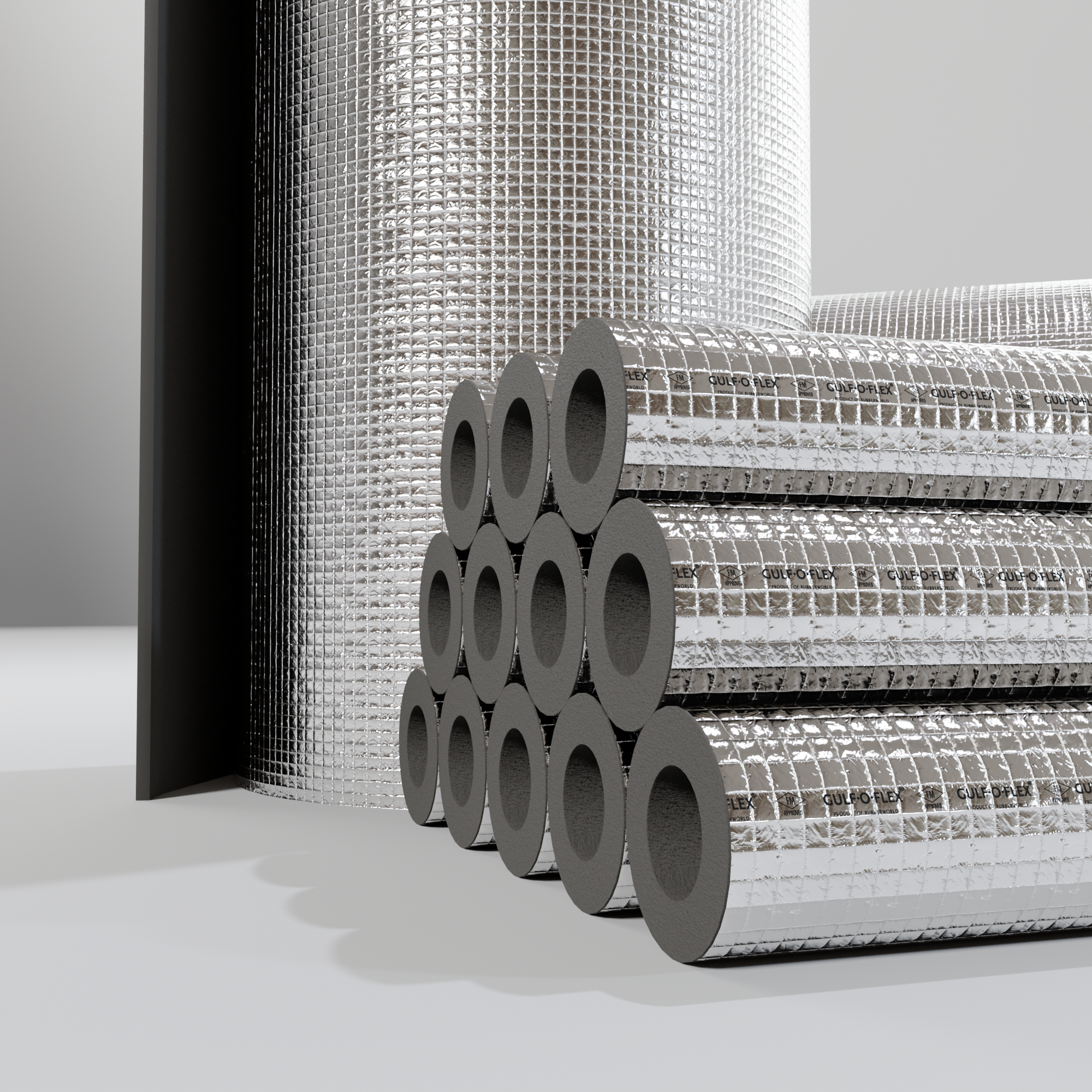

XLPE foam with alupet facing

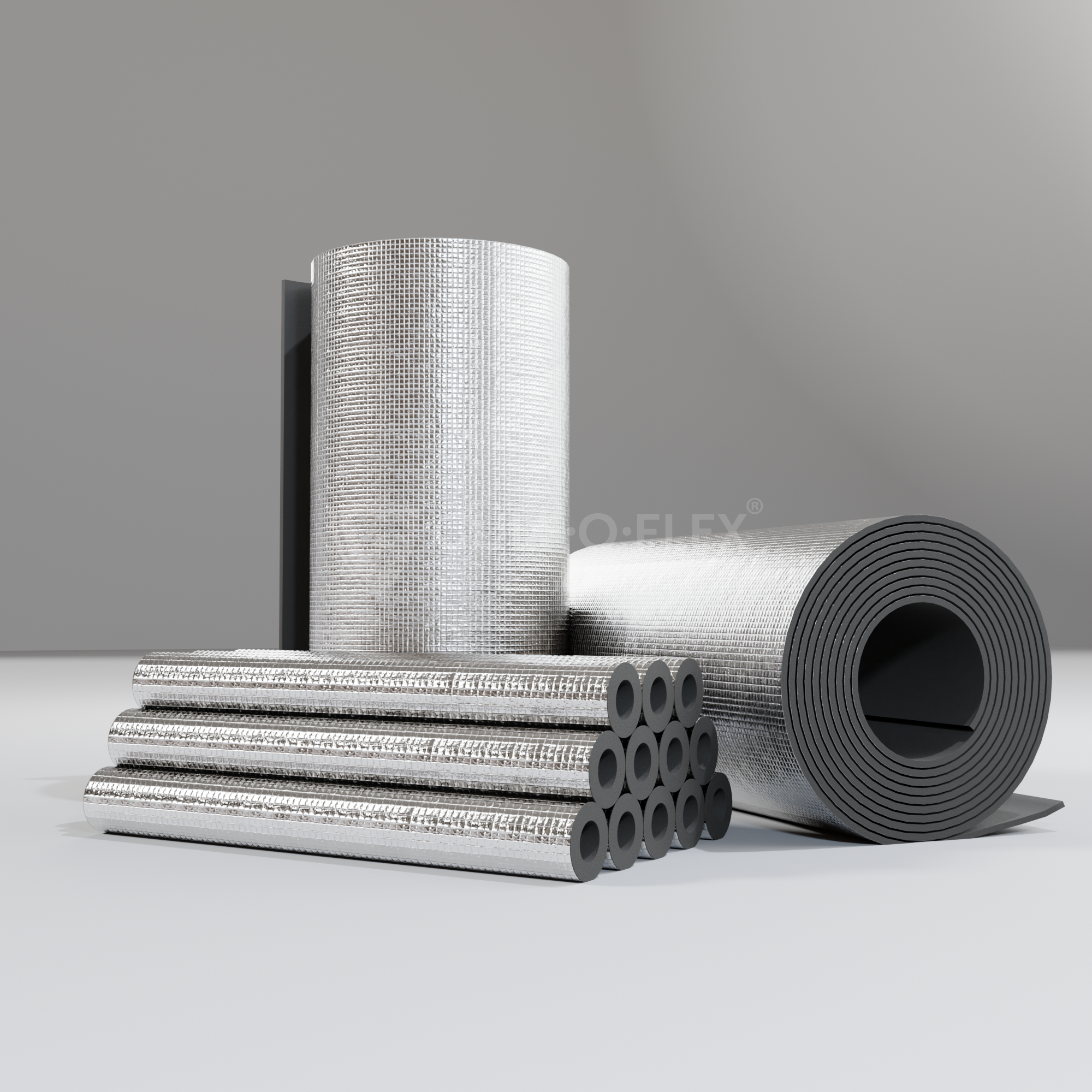

XLPE insulation roll

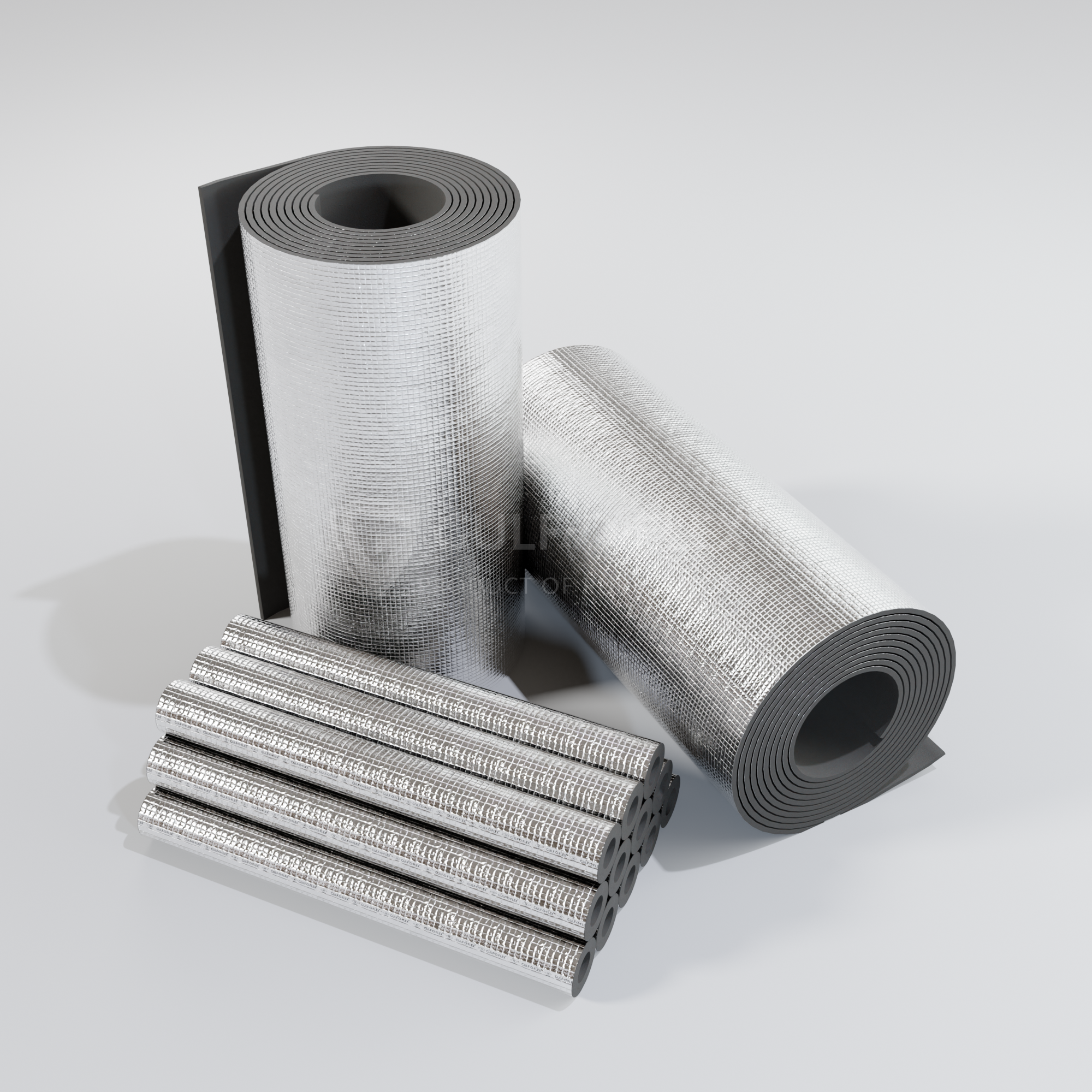

XLPE pipe insulation application
Technical Data

Full specifications.

Download TDS
ParameterValue
01Material
Chemically Crosslinked Polyethylene Foam
02Cell Structure
Closed Cell
03Density
22–45 kg/m³ (ASTM D 3575)
04Thermal Conductivity (λ)
0.045 W/m·K at 35°C (ASTM C518)
05Operating Temperature
-183°C to +115°C (ASTM D 3575)
06Water Absorption
≤ 2% (ASTM D 1056)
07Water Vapour Transmission (foil side)
0.041 g/m²/24h over 7 days (ASTM E96)
08Vapour Diffusion Factor (μ) - Foam
≥ 8,000 (BS EN 12086)
09Vapour Diffusion Factor (μ) - Foil
≥ 11,000 (BS EN 12086)
10Fire Rating
BS 476 Part 6 Class O / Part 7 Class O
11Surface Burning
FSI ≤ 25, SDI ≤ 50 (ASTM E84)
12Flammability
Self-Extinguishing
13Facing
Alupet (thin layer)
Values are typical. Full tolerances available in datasheet.DOC · GOF-XLPE-TDS-26
Use Cases

Specified across critical projects.

01
HVAC Ductwork
02
Underfloor Heating Systems
03
Marine Insulation
04
Automotive Soundproofing
05
Construction Insulation
06
Industrial Process Piping
Compliance

Independently certified.

BS 476 Part 6 & 7
ASTM E84
ASTM C518
ASTM D 3575
ISO 9001
Verified · current revision
All certs
Talk to an engineer

Ready to specify Gulf-O-Flex® XLPE?

Our technical team supports sizing, BoQs, submittals and compliance documentation for projects across the GCC and beyond.

ISO 9001 Class O 50+ Countries
Technical desk
Mon – Sat · 09:00–18:00 GST
  • Project-specific sizing & BoQ
  • Submittals & compliance dossiers
  • Site visits & installer training
  • Sample dispatch within 48 hours
Reach the team Avg reply · 4h
