NBR Foam with Alu-Clad Facing

Gulf-O-Flex® AlucladEngineered insulation, Middle East proven.

Best-selling closed-cell NBR insulation with factory-applied Alu-Clad facing - a passive, self-sustaining solution for outdoor and mechanical systems.

Gulf-O-Flex® Aluclad is a Flexible Elastomeric Foam made of Nitrile Butadiene Rubber (NBR), available in thicknesses from 6mm to 50mm in both sheet (with or without self-adhesive) and tube forms. The insulation is finished with a factory-applied Alu-Clad facing, making it ready for external applications - the facing protects the foam from UV rays and minor mechanical damage.

Request Sample View Specifications
30+
Years
6/6
Certifications
6+
Applications
Material
Flexible Elastomeric Foam (NBR) with Alu-Clad facing
Cell Structure
Closed Cell
Density
50–70 kg/m³ (ASTM C 302-13 / BS EN 1602:2013)
Thermal Conductivity (λ)
0.0321 W/m·K at 35°C (ASTM C518-17)
Compliant batch
Lot · GOF-ALUCLAD-26
Certified toFM ApprovedUL ListedEPD VerifiedBS 476 Part 6 & 7ASTM E84 / UL 723ISO 9001
Performance

Engineered for extreme climates.

Four pillars define every Gulf-O-Flex® roll, sheet and tube - measured, certified and serialised.

01
Thermal
0.0321 W/m·K at 35°C (ASTM C518-17)
Conductivity
02
Fire Safety
BS 476 Part 6 & Part 7 Class O
Reaction to fire
03
Moisture
0.16 vol% (ASTM C534 / C209-2015)
Vapour barrier
04
Temperature
-40°C to +105°C (ASTM C 534)
Service window
Overview

Built around three decades of regional know-how.

Gulf-O-Flex® Aluclad is a Flexible Elastomeric Foam made of Nitrile Butadiene Rubber (NBR), available in thicknesses from 6mm to 50mm in both sheet (with or without self-adhesive) and tube forms. The insulation is finished with a factory-applied Alu-Clad facing, making it ready for external applications - the facing protects the foam from UV rays and minor mechanical damage.

A passive solution to energy efficiency, Aluclad needs no active maintenance to deliver consistent thermal performance. Its lightweight, flexible structure resists heavy stress without breakage, while exceptional resistance to moisture vapor, mold, and mildew ensures long lifespan, reduced downtime, and continuing efficiency across mechanical and outdoor systems.

Manufactured
UAE, Saudi Arabia, Srilanka
Distributed
90+ countries
Lead time
2–4 weeks
Highlights

Why specifiers choose this grade.

  • 01Factory-applied Alu-Clad facing - UV protected, no further cladding required
  • 02Closed-cell NBR foam - water absorption only 0.16 vol% (ASTM C534)
  • 03Zero water vapour transmission - 0.00 Perm in (ASTM E96/96M)
  • 04Self-extinguishing - Class O (BS 476 Part 6 & 7)
  • 05FSI ≤ 25, SDI ≤ 50 (ASTM E84 / UL 723)
  • 06UV stability - over 10,000 hours with no surface cracking (8 years)
  • 07Zero ODP - CFC and HCFC free, sustainable & energy efficient
  • 08Available in sheet or tube form, with or without self-adhesive
Gallery

Product close-up.

Gulf-O-Flex Aluclad insulation

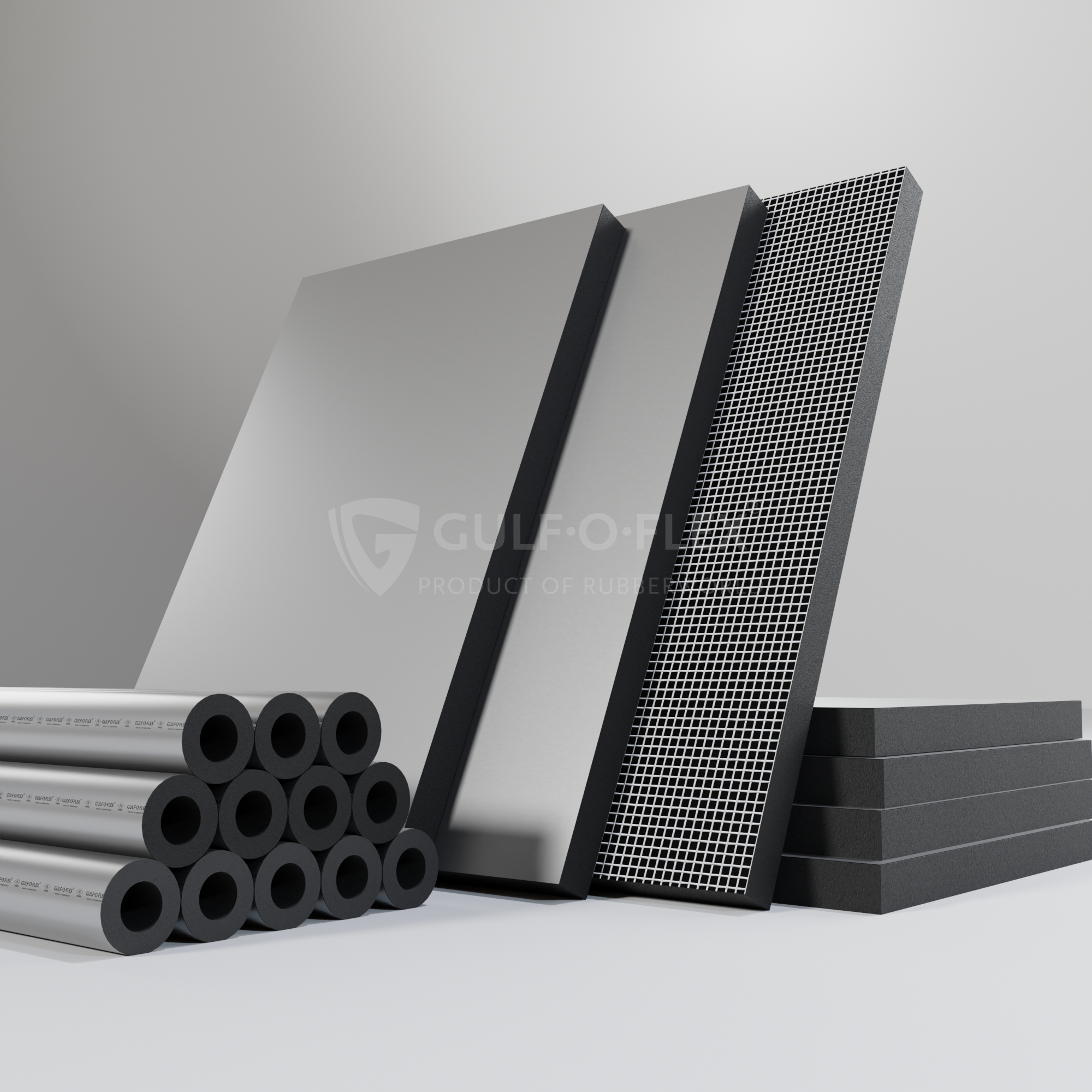

Aluclad pipe jacketing

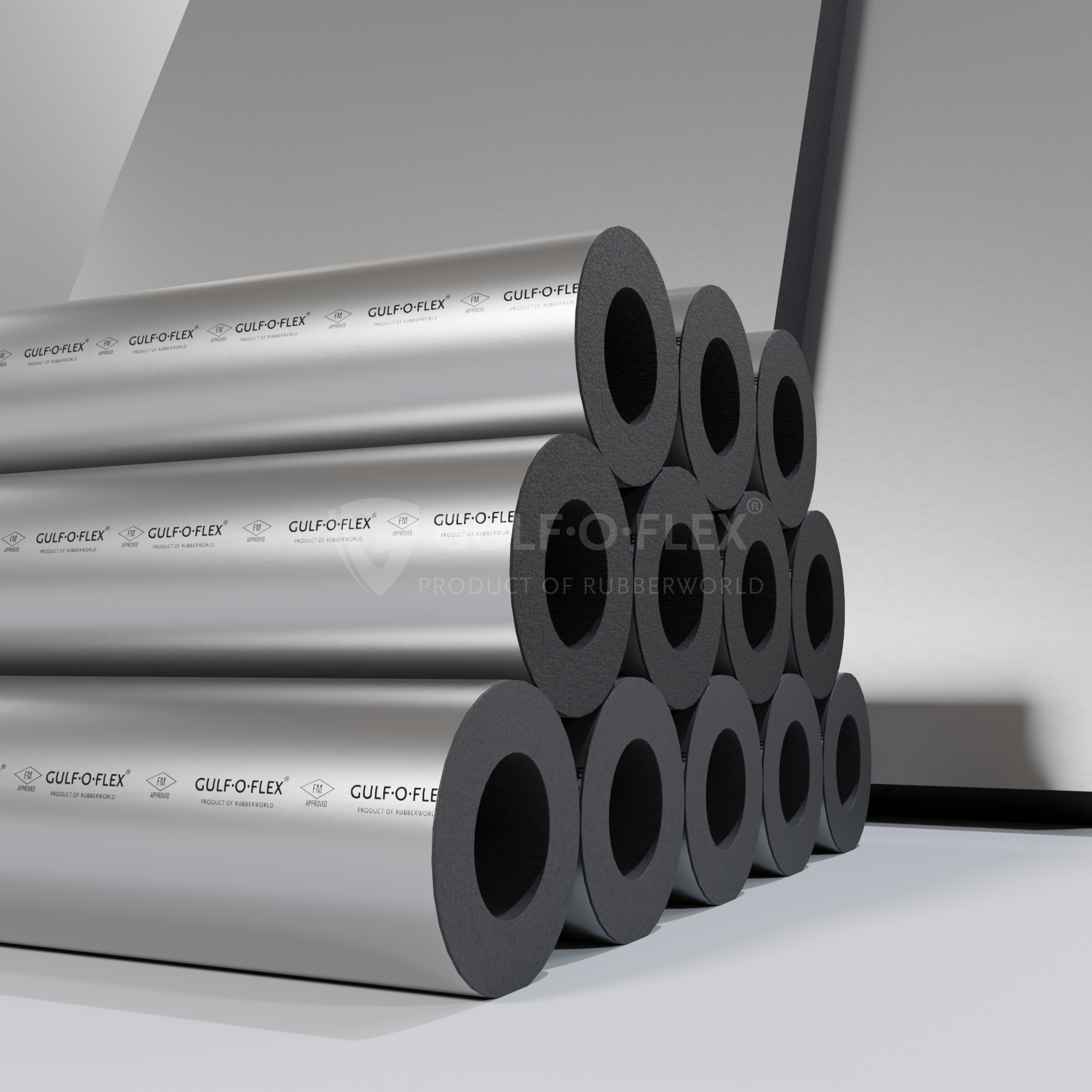

Aluclad sheet insulation

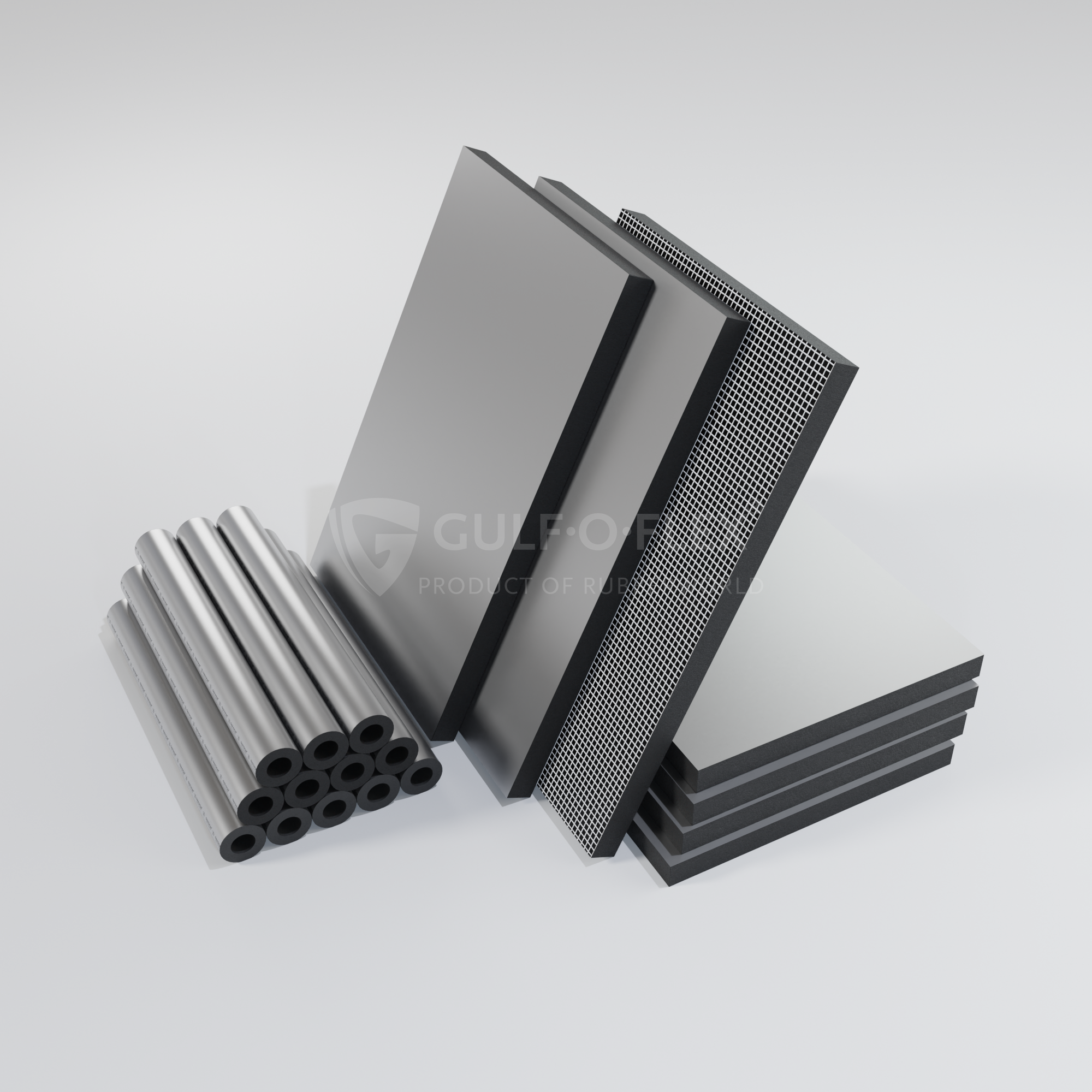

Aluclad outdoor application
Technical Data

Full specifications.

Download TDS
ParameterValue
01Material
Flexible Elastomeric Foam (NBR) with Alu-Clad facing
02Cell Structure
Closed Cell
03Density
50–70 kg/m³ (ASTM C 302-13 / BS EN 1602:2013)
04Thermal Conductivity (λ)
0.0321 W/m·K at 35°C (ASTM C518-17)
05Operating Temperature
-40°C to +105°C (ASTM C 534)
06Water Absorption
0.16 vol% (ASTM C534 / C209-2015)
07Water Vapour Transmission
0.00 Perm in (ASTM E96/96M)
08Vapour Diffusion Factor (μ)
> 76,366 (BS EN 12086:2013)
09Fire Rating
BS 476 Part 6 & Part 7 Class O
10Surface Burning
FSI ≤ 25, SDI ≤ 50 (ASTM E84 / UL 723)
11Foil Thickness
0.230 ± 0.05 mm (340 g/m²)
12Foil Tensile Strength
200 N/15 mm (EN ISO 527-3)
13Foil Elongation at Break
48% (EN ISO 527-3)
14Foil Tear Strength
70 N (EN ISO 527-3)
15UV Stability
8 Years (internal weatherometer test)
16Emissivity
0.065
17Thickness Range
6mm to 50mm
18Available Forms
Tubes, Sheets
Values are typical. Full tolerances available in datasheet.DOC · GOF-ALUCLAD-TDS-26
Use Cases

Specified across critical projects.

01
Hot & Cold Water Plumbing
02
Refrigeration Lines
03
HVAC Ducts
04
Outdoor / External Pipework
05
Residential & Commercial Properties
06
Construction, Oil & Gas, Automotive
Compliance

Independently certified.

FM Approved
UL Listed
EPD Verified
BS 476 Part 6 & 7
ASTM E84 / UL 723
ISO 9001
Verified · current revision
All certs
Talk to an engineer

Ready to specify Gulf-O-Flex® Aluclad?

Our technical team supports sizing, BoQs, submittals and compliance documentation for projects across the GCC and beyond.
